Very nice to hear from somebody involved in the Valdonega designs!
Those fonts are like secret jewels, and I've long admired the early
adoption of optical scaling in digital type. And I think as long as
Valdonega can maintain success as printers due (partly) to those
proprietary fonts, not releasing them retail makes perfect sense.

I have a small specimen of the VAL fonts that I got from a conference some
years ago, but of course anything more you can divulge would be great!

hhp

Very interesting work. I'm about to go to breakfast and worship, so I don't have time right now for a detailed post, but please take a look at the PDF of all the outlines I've drawn so far on this project. I will follow up later on the points you bring up.

Great!

I am going to work also now.
But I couldn’t do without watching your Designs even though I will be late now ;-)
Great! I saw that you also did the original foundry type. I am very impressed.
Please go on. Lets talk more about it if you like.
Very nice your designs!

Stefan

Those fonts are like secret jewels

Yes they are! Specially the last ones as Centaur and Garamond and also
the improved Dante. Dante for example you cannot at all compare to the standard
version on the market, this one really has some of the edgy and yet sensible feeling of its designer. Here comes Charles Malin into the discussion. And more oven their Griffo Design (that was never done)...

Its a petty, I think it will be difficult to get more printed material in terms of specimen because in the later times of the project Mardersteig didn’t want to spend so much on these things for financial reasons. I could send you a folded paper (A4) of a Baskerville specimen but its not the very best probe of what was done.

Lets talk later if you want I have to go to work now..

Stefan

Great to hear from you

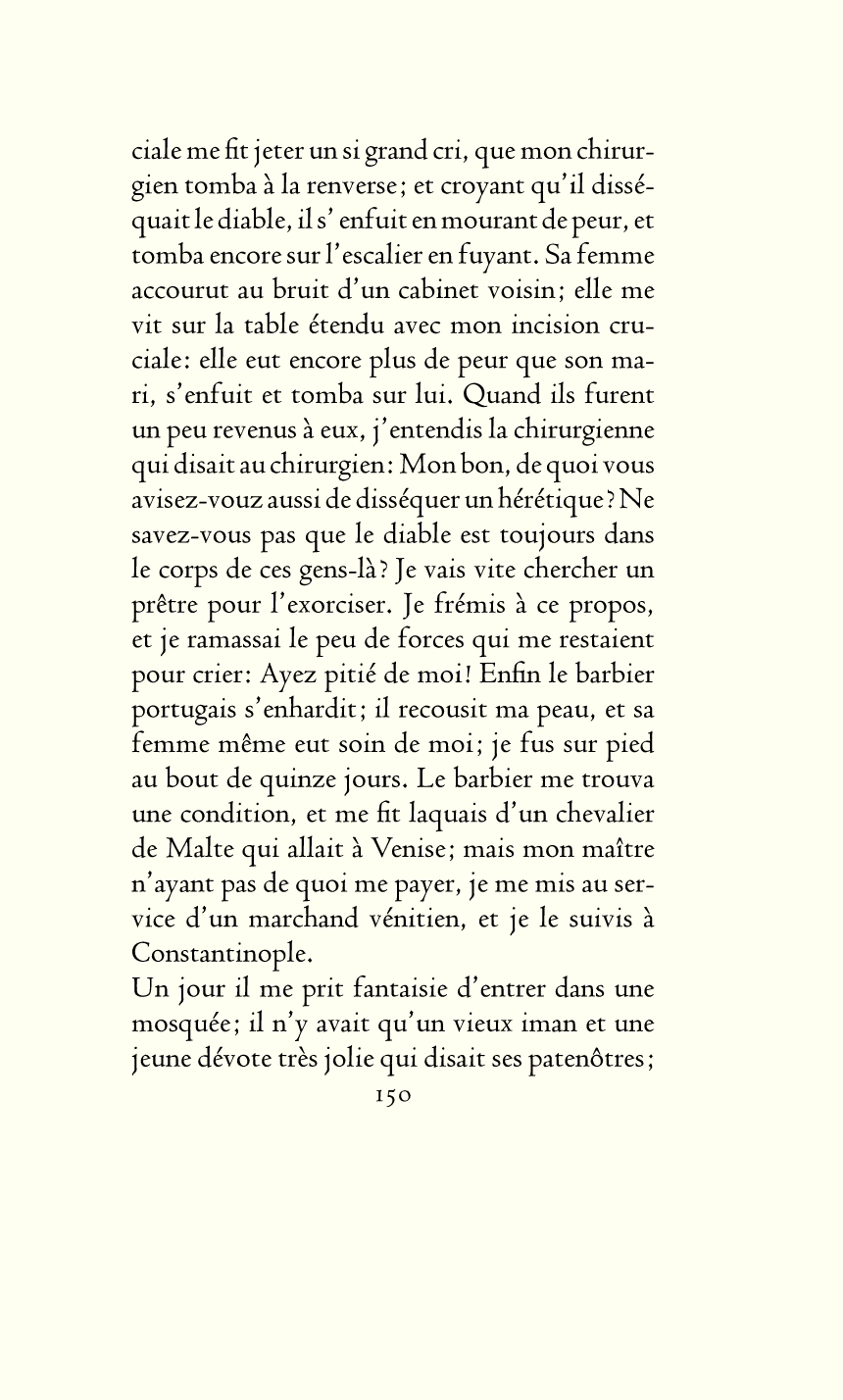

this is a page I once set from Centaur 16 pt copying a page set by
Giovanni Mardersteig I don’t remember the title of the book now (barbiere..?)
this page was almost identic with its original hotmetal version.
If you want I can tell you later some of its design secrets because I did strange
things with bezier curves ;-)

>If you want I can tell you later some of its design secrets because I did strange things with bezier curves ;-)

I'd be very interested to see a few examples of your approach, with the nodes and handles of the bezier curves shown.

Yes, please - secrets are always welcome! :-)

hhp

Hi William, hi Hrant,

secrets? ;-) Ok, maybe I exaggerated a little ;-)

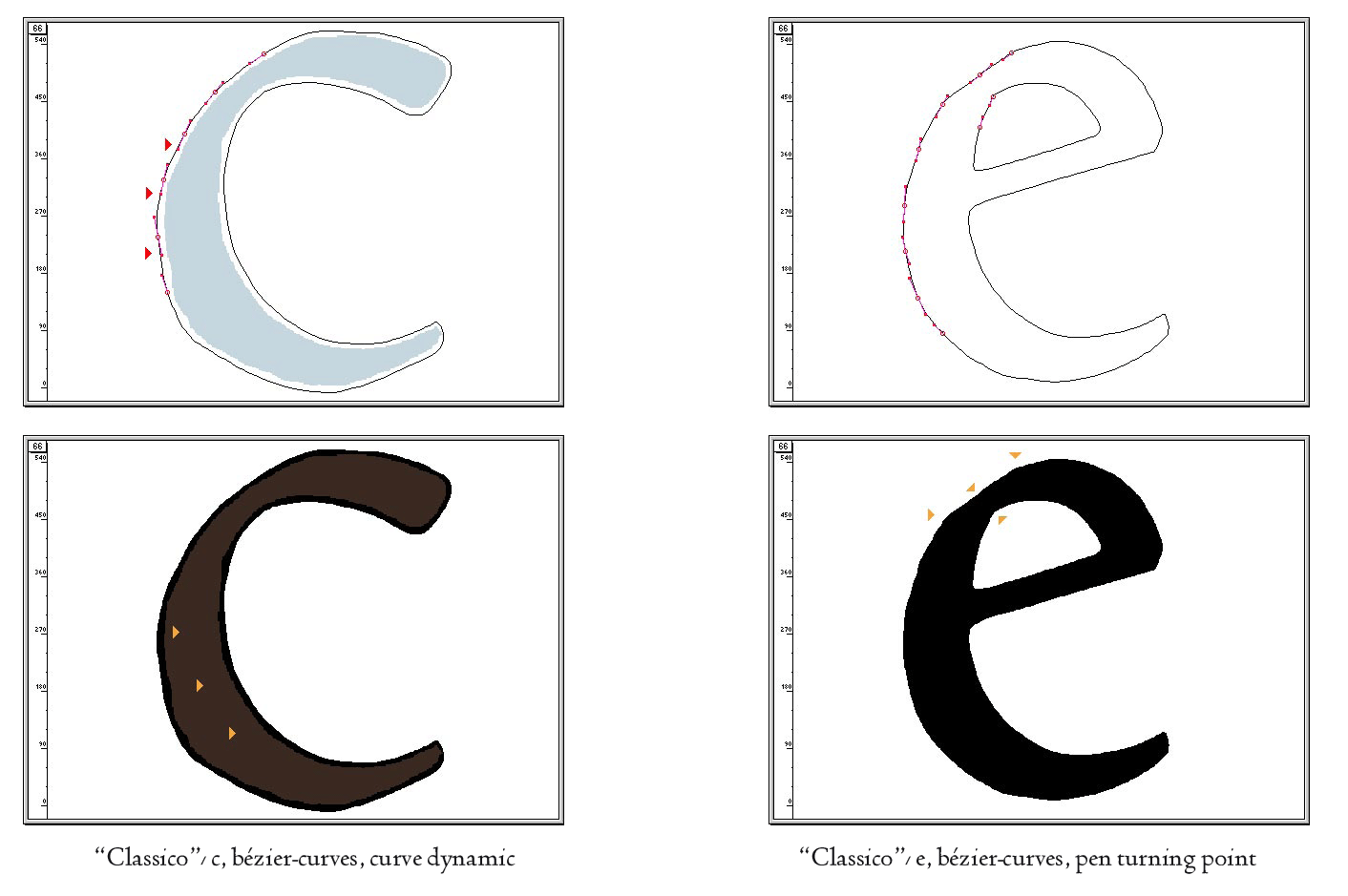

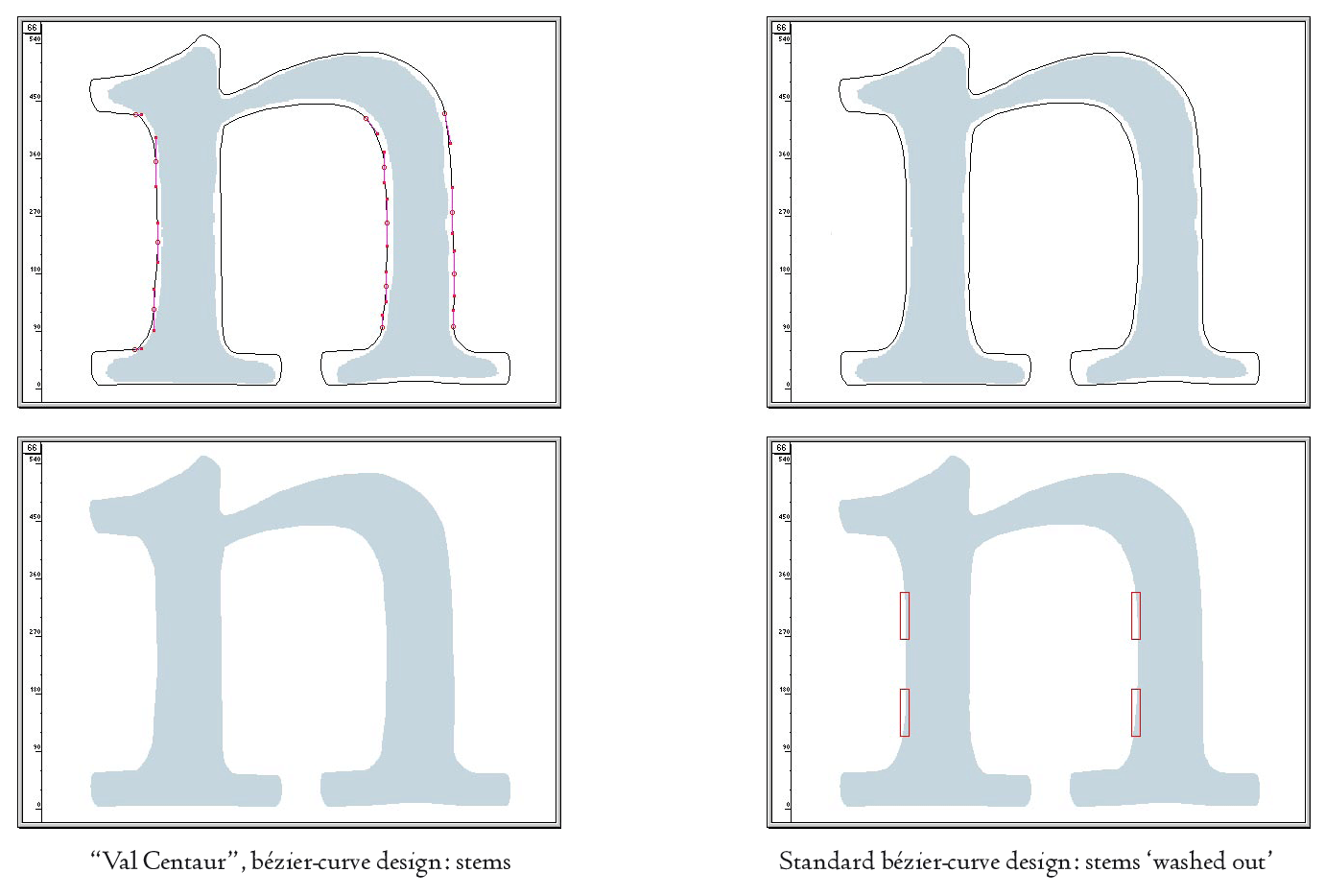

Seriously, when we worked at the fonst for the VAL project the greatest problem seems to be the blackness of the characters printed by hotmetal press. (Please excuse my bad English when I try to explain - its the only one I have ;-) The guys at the Stamperia had tried a lot also before I entered the project. Seemed a problem without solution. Mardersteig never seemed quite content and neither we. Certainly we tried to blow up outlines but even when we arrived at typefaces that could be called bold we didn’t succeed in giving the feeling of blackness. I don’t know if I explain right. In part this defect obviously from the lacking of the pressure of the letters into the paper and the lack of colour in the offset-black which is a delusion after all. But when I made the experiment reproducing hotmetal pages and restamping them in offset they still look great in comparison. So I did experiment a lot with bezier curves because I believe in part it could be a problem of nature of form. This is quite daring I think because one could believe that basicly every form can be reporduced by bezier curves. But I still believe that they can’t. Its in first the line the problem of the places where two lets say more or less round forms link to each other. For example a letter stem when it becomes a serif. This zone is very difficult and if you wish to understand and reproduce forms spontanously its almost impossible to catch these zones in a good way. Or you do a thing to round too smooth or too much with an angle. And you cannot add points and points to define better. We all know that. So one day I found a special way to put curve points that form a stem slightly displaced with tangents remaining parallel and when this forms enter the serif I did it at 90 degrees. More or less like in the picture that I add.
Moreover the scan process seemed to wash out the letters like a stone from water. They lack determination somehow. Not easy to explain it. Maybe also that I am crazy. So this little trick seemed to force the computer while reinterpretating the characters when doing the films to fill the zones where one form goes into another with additional bit-points there where they have been swept away during the scanning. May sound funny but it worked!
The Centaur page was made with characters like that. Obviously it is impossible to sell them because they work only in the very size from which they were scanned. If you enlarge them the outline errors reveal. But if you use the 16 point as 16 point it is impossible to see it and the character appears slightly more rough more organic somehow.
Well, at those times we worked in FontStudio and I would not repeat this method in FontLab now but I still believe it was a quite interesting method. And I am still convinced that the greatest problem of nearly all modern faces is that the lack vitality because they are somehow too smooth too round at least to represent originals from the past.

Stefan

Thanks, Stefan, that is fascinating.

I see what you did is introduce a deliberate undulation in the line. The result is that the outlines don't look like you made a mistake and left a 'lump' in a bezier outline. Instead the outlines look more like they were chiseled out, as in the old days of punch cutting with a chisel.

Nice effect!

I am working on a classic revival also. I probably won't do this as I want a more updated, modern look, but I will try on a few characters and see the effect. Thanks for sharing your ideas.

This is indeed fascinating.
And I can even picture a way to automate this so that
"plain" bezier outlines are easily given the chisel effect...

hhp

...as in the old days of punch cutting with a chisel.

Graver.

Burin?

hhp

Yes, burin is probably the correct term for the type of graver used in cutting type. Mine used to belong to Christian Paput at the Imprimerie nationale. The back of the blade has been ground in ways that I have not seen on typical engraver's burins, creating a sharper, narrower point. It is quite clever: there are two planes between the point and the back of the blade, which allow for a sharper point while maintaining strength.

[Burin comes from the French word for cold chisel, which may confuse some people. An engraver's or punchcutter's burin is nothing like a cold chisel.]

John, do you have any pictures?

John can probably provide nice color photos, but otherwise you can see monochrome images of what might well be the very same burin in Paput's "The Punchcutting". I don't know what he's up to now, but when the IN was still in place he very graciously gave me a tour of that amazing institution, and some of the things I saw there are indelibly burned into my memory!

hhp

I'll try to take some photos tomorrow, if the light is better. It is a difficult oject to photograph.

Thanks guys!

Yes I found also it could have something to do with the more spontaneous way of making forms like in a punchcut (although I never done that). The thing is that the kind of forms you need in a classic redesign come out more easily I found. But I probably will not do this again, too. Its hard to do it with FontLab for here everything is so damned clear ;-)
Not like in the old days of pixeled FontStudio working. I am not sure wether this is overall such a great advantage. Anyone there who works with Anti-Alias switched on?

By the way, Wow, there is someone who got to know Christian Paput?
When I was beginning typedesign I started (tried) with a wonderful Garamond (I draw only by hand producing later black letters putting them together later in darkroom work) They at the Imprimerie were so kind to send me a wonderful specimen of Garamont (with the t at the end) I heard of him wanted to see the Imprimerie but didn’t make it.

I have great respect of the punchcuttes first of all I believe the work of Malin was extremely good, wasn’t it? I always had great admiration for the Griffo of Malin and Mardersteig.
One of the rare cases I find that the recutting was more beautiful than its original for I found the types in Aldus always a little stiffy (the right word? I doubt so)

Thank your for your interest here!
Its great to hear that one is not alone with this kind of things in mind!

Salute
Stefan

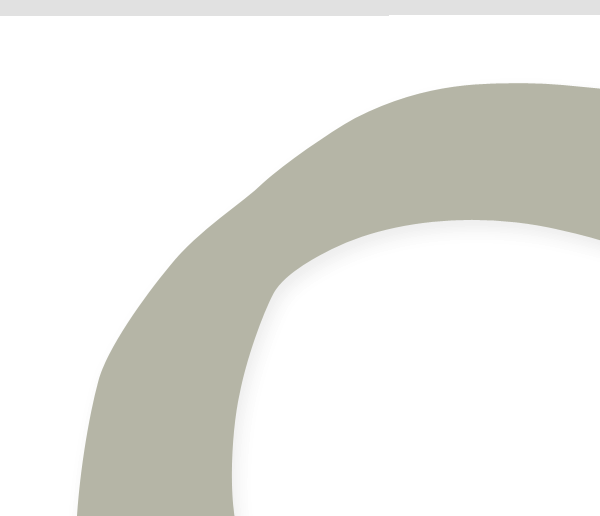

Jenson detail

Stefan

I love what you have done with this font. Coincidentally I was looking a rather similar font that was used by Mondadori in Italy in the 1940s. Richard Beatty helped me identify the font as Monotype Pastonchi. Originally I had thought it was some variation of Centaur. It has a similar elegance and its richness on the printed page illustrates what you were speaking about — that deep black of letterpress which is so hard to reproduce digitally. The book here was a collection of poems by Salvatore Quasimodo.

Eluard, Pastonchi is indeed a fine typeface.

It was art directed by Francesco Pastonchi himself and designed by Eduardo Cotti of the Regia Scuola Tipografica in Torino. Pastonchi wanted to use it on the new series of books on the classics of Italian literature. Initially the Italian foundry Nebiolo was to cut the typeface but for economic reasons it became impossible. Coming full-circle from Stefan’s original post, it was through Giovanni Mardersteig that Mondadori and Pastonchi got in touch with Stanley Morison and had Monotype cut the type, both the final version and the many revisions and proofing versions that needed to be done to the original drawings.

There is a digital version of Pastonchi on sale by Linotype but I don’t know if it’s any good.

There is a digital version of Pastonchi on sale by Linotype but I don’t know if it’s any good.

Some of those alternates are worthy of a little hyperbole.

verbosus — many thanks for that additional background information, this was exactly what I was after. In fact I bought the digital version from Linotype (in OpenType!) last night. So, with the acknowledgment that I've had very little time to work with it, it seems to be a remarkably faithful rendition of the metal type, much darker than Monotype's usual rather thin digitalisations. This one has real power and character.

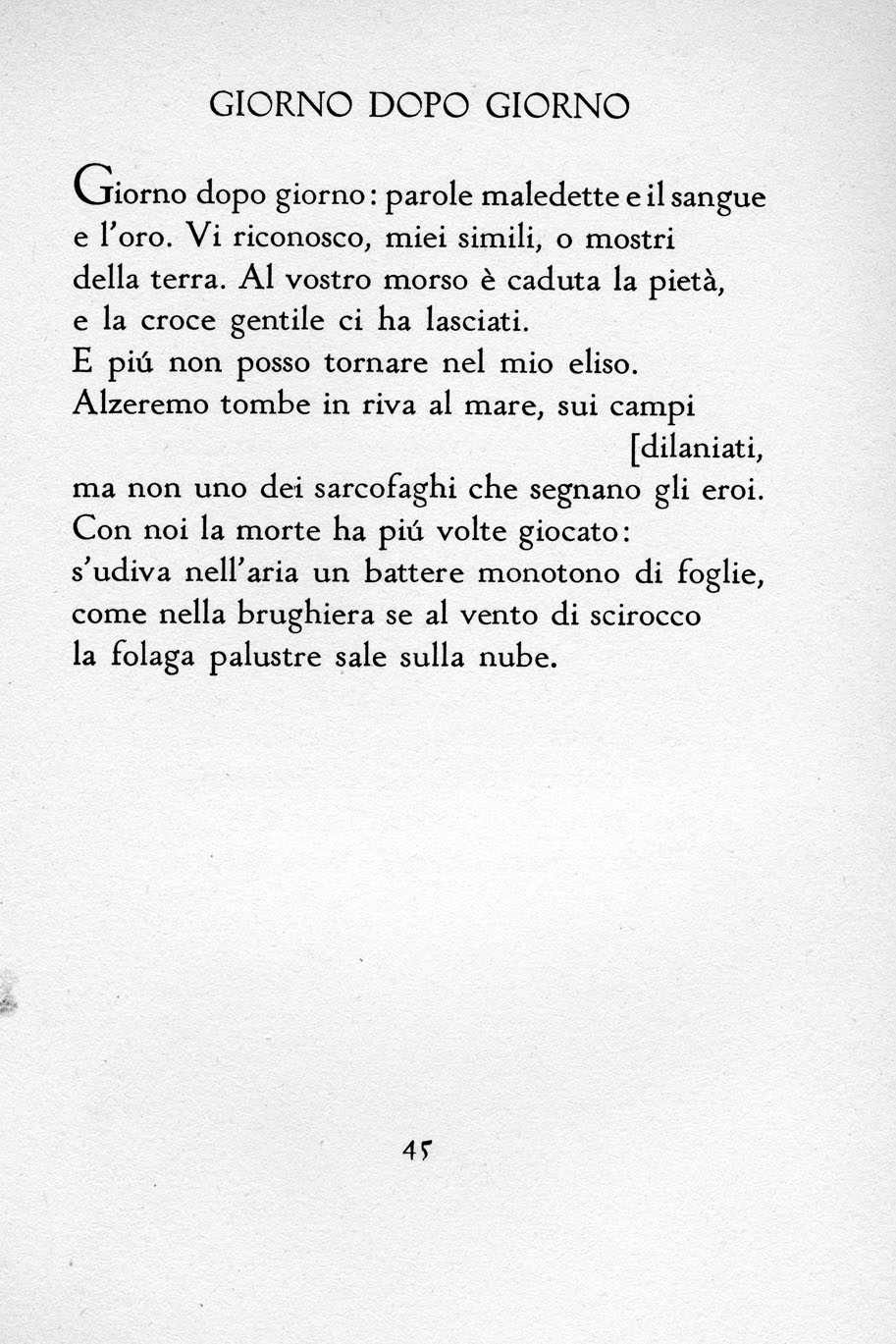

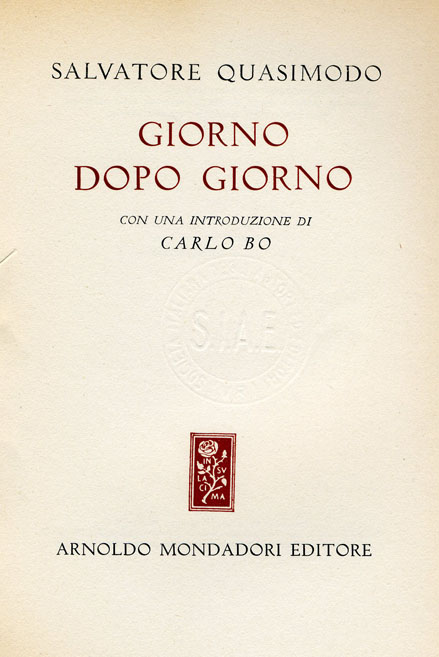

I am doing some translations of Quasimodo's poems and setting the above scan next to a translation set in digital Pastonchi makes me think that the latter is not embarrassed by the comparison. (Though I had to loosen up the digital version a little, both the letterpacing and the word spacing.)

Do you happen to know what typeface was used by the publisher Giulio Einaudi, who published Eugenio Montale's first too books? (Montale's third was printed by Mardersteig himself, in Dante, I think.)

Thanks again

Eluard, I don’t know the specifics of the first two Montale books (if you want to send me an image, my contacts are on my home page) but it’s possible that they have been set in Simoncini Garamond, as that typeface was custom-designed by Simoncini and Ludwig & Mayer specifically for Einaudi. In fact, Mondadori (with Pastonchi) and Einaudi (with Simoncini Garamond) are the first examples of custom type designs in the modern history of publishing in Italy.

Verbosus — many thanks again. I will send you a scan, but I suspect you are right. What struck me about the Einaudi face was just how rich it was in contextual alternatives — it's really beautifully done! Alas digital Simoncini, though very nice, has no such subtleties. Here's hoping for an open type version with some effort put into it!

Einaudi and Mondadori books make me long for a time when care was taken in the production of poetry books. Even in the austerity of war they were wonderful objects.

Yes, digital Simoncini Garamond as sold by Linotype doesn’t have old style figures nor small caps. As far as I know, the rights to the typeface at the moment are held by Linotype (possibly through Neufville, which should have acquired the rights of the old foundry Ludwig & Mayer which in turn consulted on many Simoncini typefaces). I don’t think an OpenType version is in the works, but one never knows.

If you like Mondadori and Einaudi I think you’d love to see books published by either Alberto and Enrico Tallone or Giovanni and Martino Mardersteig.

Hi Eluard,

biefly (I am at work)
Have you seen the Valdonega Aesthethic Line typefaces?
Try to contact Mardersteig,
he will be pleased.

At 13, march there will be a little exponation of his stuff.
I will make a little little speech ;-))

Your pages you shown are beautiful indeed.
Don’t try to achieve this with the digital stuff in common use..

Lets speak more about these things
looking forward to it

Stefan

Simoncini Garamond with small caps & OSF is available here: http://www.myfonts.com/fonts/efscangraphic/garamond-simoncini-sb/roman-sc/

Stefan: can you provide more informations about this Mardersteig exposition? If it’s in Italy I’d love to attend.

Nevermind, I found some informations on the (new) Valdonega books Web site. The exhibition will open at the Museum für Druckkunst, in Leipzig.

Thanks verbosus — I tried your web page but I only got the index of usage. I will post the Simoncini to this thread, below. It's worth a public display somewhere.

Stefan — many thanks, I will try to contact Martino.

loremipsum — thanks for pointing me in that direction. And they are Open Type too!

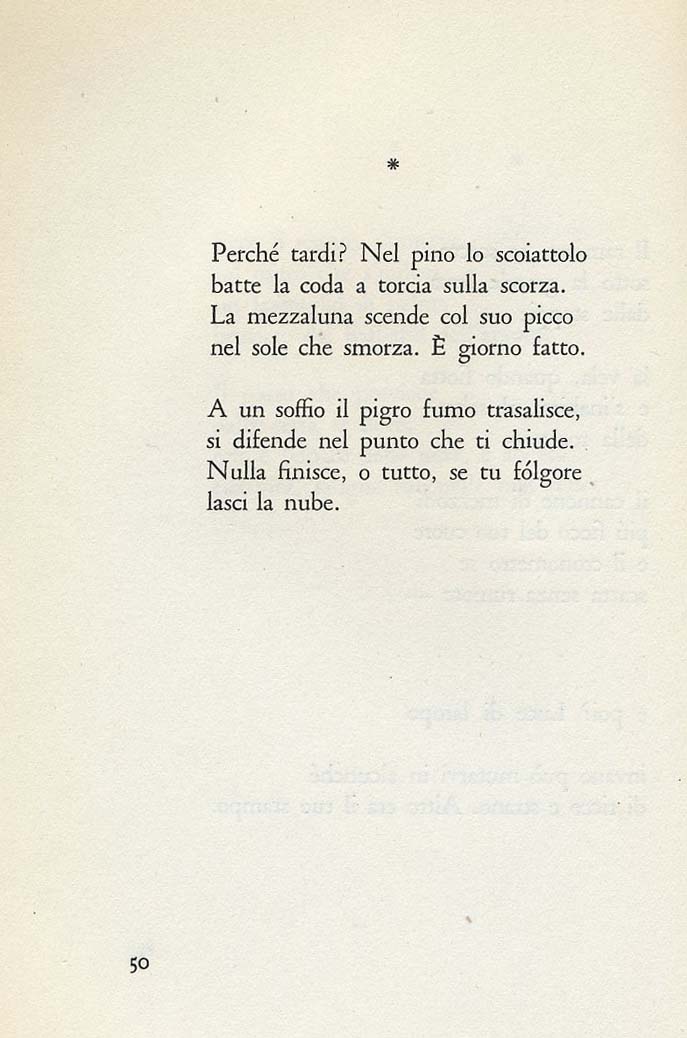

Here is a page from the 1945 Einaudi edition of Montale's Le Occasioni, set, as noted by verbosus, in Simoncini Garamond.

Note the alternative t's in the double t's The second is shorter in some words, giving a falling effect. In some it is the same height and in some (not shown) it is taller. In this way the typesetter has subtly enhanced and reinforced the mood of these sad love poems. The descenders of the font are completely unlike the Monotype digitalisation, which are far too short. Here is a supremely elegant typeface, set by someone sympathetic with the work. (I think there are also two c's but I can't be sure.)

Montale's next book was set in Mardersteig's Dante.

Eluard, I don’t know what it is, but I don’t think what you have there is Simoncini Garamond. For one, Simoncini wasn’t making matrices in 1945 and Simoncini Garamond came much later, around the 60’s I think. If you want to send me a higher-resolution scan I fixed my home page now and you’ll find my contact details there.

Thanks verbosus — I will. I'm very curious now as to what it is!

Hi Eluard, verbosus,

very nice that Garamond!

If you come to the exhibition at Leipzig, verbosus, we may meet us there!
Are you in Italy? (I loved to be, but I am not :-((((

Stefan

Just to tie up a couple of loose ends. The typeface posted above by Eluard was identified by Mike Yanega as being Estienne in another thread. As for Leipzig, Stefan, I’m afraid I don’t think I’ll be able to attend – because yes, I am in Italy – but I do want to get in touch with Valdonega and see if there are any plans for the exhibition to move back here, eventually.
