You mean if the font size is a fraction of a full pixel? How are you getting that?

This question was definitively answered in: "Body text point sizes: whole increments or in between?"

John: Yes. I am getting this in all web browsers on Win 7. There’s some text sized with percent instead of pixels.

DB: Can’t find that, except an Adobe forum thread that is missing.

Ok, DB: found it, I guess: http://imap.typophile.com/node/91087 If you are refering to your usual cryptic mode, I’m not getting smarter. There is nothing, as far as I can tell, that relates to my question in that post of yours. I am not asking about delta hints, I am asking about links: my hyphen jumps from one to two pixels and back again at random, seemingly disregarding the control value table. It is not a case of CVT cut-in (Fontlab equivalent) neither.

from referenced thread... "If delta hints are hints that trigger adjustments at certain sizes, are there ramifications for delta-hinted fonts of using fractional point sizes?"

FF: "Yep."

The answer is no.

From this thread:"Does Windows throw away all hinting information if the font size is a decimal of a full pixel?"

The answer is still no.

FF: "There is nothing, as far as I can tell, that relates to my question in that post of yours..."

Oh?

FF:"I am asking about links: my hyphen jumps from one to two pixels and back again at random..."

Probably not. TT does not do random rounding. You've probably made another mistake.

Sure I’ve made a mistake :) I’m just trying to figure out what. If I size something to a fractional pixel size it goes crazy in Windows. Any idea what it might be?

I’ve read arguments against PPEM specific delta hints (in Fontlab?), claiming they don’t work for fractional sizes. I think from Beat, but I don’t remember. Maybe I was wrong.

Are you considering my workflow now, or are you talking about an ideal VTT world?

Can you clarify what you mean by 'fractional pixel size'. Do you mean fractional 'px' size in CSS, or do you mean fractional ppem size? If the latter, how are you doing this?

I mean px size in CSS.

GDI rounds fractional sizes to full pixels right? How does this affect the hinting? If it does at all? I am reluctant to believe otherwise, as I've seen similar issues before corrected by specifying the font size in full pixels.

FF>"I mean px size in CSS."

You mean fractional px sizes in CSS?

I see documentation for spaces but not type sizes. But... I'm fairly certain that if the web designer can and does specify fractional px sizes for fonts, that all instructions should turn off.

Does your instructed hyphen behave "normally", i.e. jump from 1 to 2 to 3 pixels thick smoothly at whole point sizes?

Yes, I am thinking of your process.

Yes, the jump from 1 to 2 to 3 pixels is as expected and "normally".

I don’t know the exact sizes. These are steps on a slider, and my Firebug plugin returns a full pixel size, which I’m pretty sure it’s not. The hyphen differs from the other letters in that it only uses a double link.

I did generate these files with Fontsquirrel’s generator. It has an option of auto adding hyphens. I’ve double checked that it was turned off, so I don’t think that’s it neither. It would also be wierd for it to override the hyphen that is already in the font.

Note that CSS 'px' is not a true device pixel. CSS px is an absolute value measurement of 1/96 inch, i.e 1 1/3 pts.

I believe what happens for text spec'd in px is exactly the same as text spec'd in any other size unit: it gets scaled to logical units, rounded and displayed at the nearest whole ppem size.

Let's see a screenshot of the FL y direction hints for the hyphen glyph, including the program.

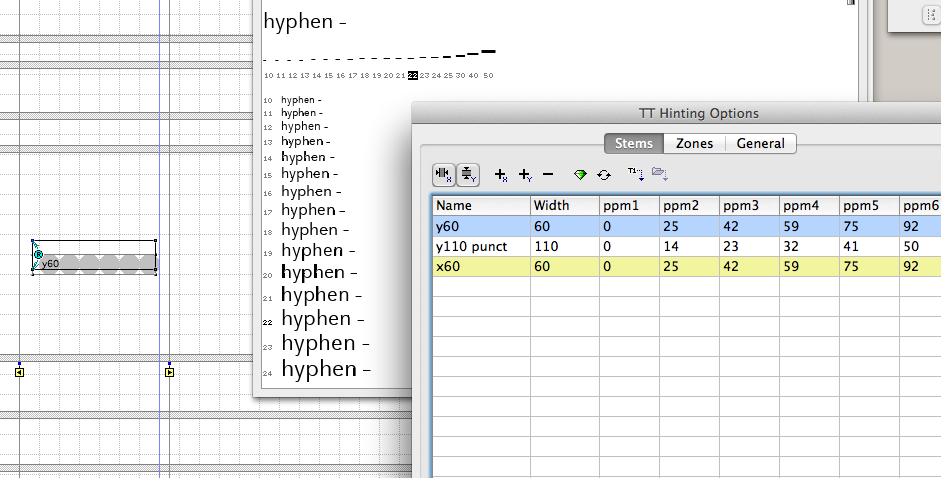

This if FLS 5.1.1 for Mac: as you can see the rendering engine is broken, but it does get the y-direction right at least. Apologies for the large image.

So, I’ve modified the slider to round all sizes to a full pixel, but that didn’t help. In the end I tested raw files (thanks Karsten), and also a different font (both raw and Fontsquirrel-generated) and it turns out the problem lies with Fontsquirrel.

I’m not exactly sure what it is though. For example, my accented a’s all render differently than their base glyph.

(It should be mentioned they have a y-direction double link to control the distance to diacritica. The base glyph a is locked to alignment zones, but none of the diacritis are.)

Something of a shot in the dark but try moving the hyphen vertically (either up or down) a little bit. My guess would be because it is directly between two horizontal rows on the pixel grid, slight variations in rendering and sizing could lead to this sort of outcome.

Is Fontsquirrel dumping your hints and applying its own autohinting?

I don't know. That might be the case. I tweeted him, but no response yet.

I find that you can choose between "use FontSquirrel's Truetype Hinting" and "Keep Existing Hinting" when you choose the expert mode.

Could this be the problem?

The very issue here is that I select "keep existing" but get something different.

(track)

Frode,

Over the past few weeks and still, I believe, the Font Squirrel Generator is going through a complete rebuild. A lot of changed behavior. However, I 'm sure they want to hear about whatever problems/bugs you run into and you'll hear back from them soon if you haven't already.

Update: It was an issue with the Fontsquirrel generator, and it also affected composite glyphs. Fixed now.

*
