Class based kerning 101

spiral2 Mar 2012

I'm a complete newbie at opentype features. Trying to learn as much as I can, but there doesn't seem to be that much information on the web for beginners.

I'm looking for an explanation of the logic and basic syntax of class-based kerning. Something in the style of this wonderful article about substitution features, but for kerning. I would also love any resources on specifically doing this with fontforge, but I can figure out this easier if I understand what's going on in the background (tables? subtables? what?)

Any pointers will be very much appreciated

Miguel Sousa4 Mar 2012#

Kerning

JanekZ4 Mar 2012#

Make a new font.
Go to Element/Font info

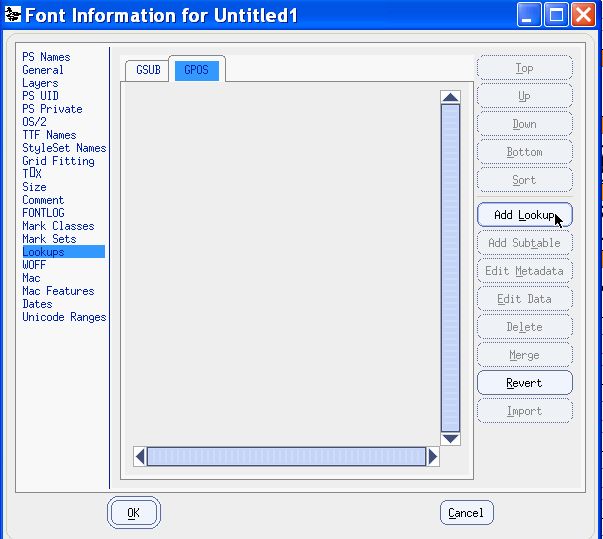

Choose Lookups/GPOS
and Add Lookup

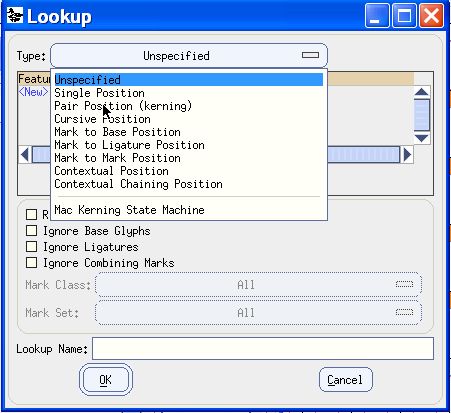

Choose Pair position (kerning)

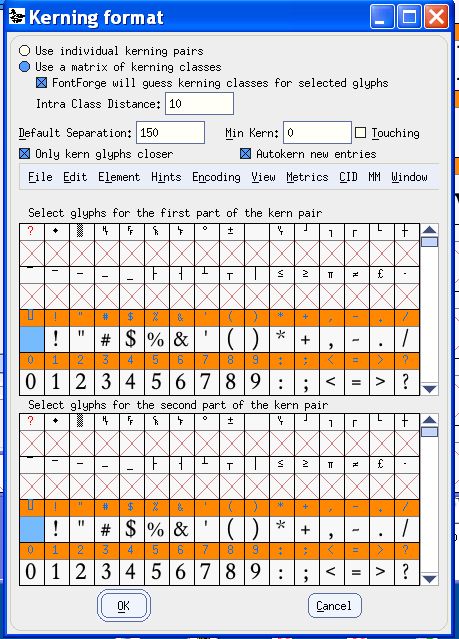

In window Kerning format choose Use a matrix of kerning classes

In fields First character I put D and O, and in Second character C G O Q. FontForge set the kerning to -110, I changed it to 10.

In Kerning Metrics window I wrote OQ

You can change the kern value moving the green line between chosen letters

In window Kerning by classes you can see the result

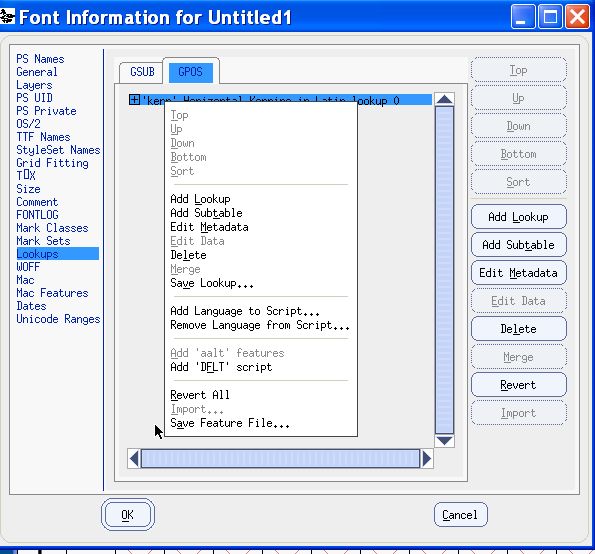

In window Font information/Lookups/GPOS you can right-click the lookup and choose Save Feature File (or only choosen lookup)

Saved

The important part of this file looks like this:

lookup kernHorizontalKerninginLatinloo {
  lookupflag 0;
    @kc0_first_1 = [\D \O ];
    @kc0_second_1 = [\C \G \O \Q ];
    pos @kc0_first_1 @kc0_second_1 22;
} kernHorizontalKerninginLatinloo;

feature kern {

  script DFLT;
     language dflt ;
      lookup kernHorizontalKerninginLatinloo;

  script latn;
     language dflt ;
      lookup kernHorizontalKerninginLatinloo;
} kern;

As you can see there is one class -left=first- with /D/O and one class -right=second- with /C/G/O/Q and the kern value between them is set to 22.

Theunis de Jong4 Mar 2012#

Wow, Janek, is that FontForge!? (Scratching head -- perhaps I should check it again. The interface looks more than a bit improved over the butt-ugly version I tried a couple of years ago.)

JanekZ4 Mar 2012#

It is :) Most powerful tho little buggy
don't know how it looks under mac, here for win: http://typophile.com/node/84219

Té Rowan4 Mar 2012#

Could be the FontForge for Windows they were talking about a while back with how XP-like the chrome is.

spiral5 Mar 2012#

thank you thank you thank you thank you!

spiral11 Mar 2012#

Some maybe basic questions: Do I create a new subtable for each class combination? or can I just add to the same one?

JanekZ12 Mar 2012#

One lookup for all classes you want to kern. You can create the second lookup for Greek script and the third for Cyryllic script. See Brill font by John Hudson as the recent and elaborated example.

raphaelb12 Mar 2012#

Here is a video memo I made for myself, maybe it can be useful!
