Akzidenz-Grotesk has old style numerals. Apart from that it is a better typeface for running text than Helvetica.

I shudder even pondering oldstyle numerals in Helvetica.

Sounds like Type Battle material. :-)

Thanks J, I will look into Akzidenz, although among the versions I have only the light weight of one seems to have them.

To Terminal and others whom this thread may tempt : Respectfully, I have no interest in anyone's opinions on Helvetica - the parameters of the job are what they are ( and happen not to be up to me )

Yes, I realize there are historic reasons against old style numerals in Helvetica, running text is counterintuitive etc : let me point to the initial post and say that the final result will not be your grandmother's Helvetica, and politely ask everyone to stay on topic. : )

How many weights/styles do you need?

I have no opinion on Helvetica other than using oldstyle figures in such a design.

I would advise you however, that if you are modifying existing Helvetica font data for a Corporate Identity, you may be asking for some very severe licensing/legal headaches.

And as you say that the final result will not be my grandmother's helvetica. I will remind you that if you start with my grandmother's helvetica font data and modify it with your soon-to-be beautiful oldstyle figures, you will, most likely, be legally required to license my grandmother's helvetica if you want to distribute your new and improved version.

A Pragmatic option:
http://new.myfonts.com/fonts/paratype/pragmatica/book/characters.html

Hi Riccardo, only regular weight is needed;

Terminal, thanks for the legal advice and looking out for me. I will look into it further and advise my client to as well, but it is my understanding that as long as they own the license to Helvetica, they can use our mod. I am not selling them a font, nor am I representing it as my work, I am rendering the service of modifying its functions AS Helvetica, which is tantamount to adjusting kerning, baseline-shifting, letterspacing and using it along with other fonts, in the case of switched ampersand, numerals and other characters. This would be what we are getting payed to do as relates to that font.

Just so long as the EULA allows those modifications.

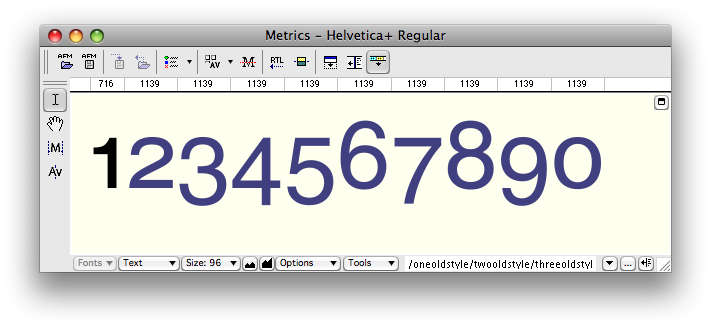

Riccard0 - thanks for that; very cool find indeed. A cursory look at the numerals has me convinced that their starting point is the same as my own proof-of-concept : i.e. they've shifted most numerals up or down, used the lc ‘o' as the zero, shortened the 1 and winged a 2..

I will have to take a look at its behavior, because the snags I ran into upon investigating my own 'faked' versions is that there is no end of trouble arising from the 1,2, 3 & 7 in terms of their tone in a body of text and 'visual' x-height—especially apparent at smaller sizes. I see their 2 is dramatically different. It's either that they compressed the 2 or that they know something I don't. I'll take a look - thanks;

BTW : I wouldn't want to discourage other suggestions. The idea that there will be numerals that ARE Helvetica is not necessarily the end-goal here... Otherwise, I'd be fighting that battle and not be asking typophile.. It would be valid just to arrive at a selection of numerals that function in the same way as an italic, or a different language, might inside latin text..

Thanks again Riccard0

> if you are modifying existing Helvetica font data for a Corporate Identity,
> you may be asking for some very severe licensing/legal headaches.

Yes. The cumbersome but [sufficiently] safe solution would be to draw
them from scratch, and make a separate font for just the new numerals.

hhp

From what I've seen, the problem is that the few grots that have OSN base them on Akzident's ones. See, for example:
http://new.myfonts.com/fonts/typodermic/divulge/regular/characters.html
But, to me, AG's numerals always feel sort of clumsy and one of the areas in which Helvetica really was an improvement.

FWIW, a long long time ago I designed a set of lc, or Os, figures for Neue Helvetica 75. I don't have these at hand, but here's a link to a very old discussion on this forum where I put up an image of it:

http://typophile.com/node/10772

Yes, shifting up and down, especially as this was a quick job for an exhibition's signage (the rationale for using lc figures with Helvetica in the first place is given in the above thread).

Material not available, in any case (naturally).

In a grotesque OSF, the crossbars of 2 and 4, which sit on the baseline, lead into the tails of 3, 5, and 9. A bad near-ligature.
I don't think there's any way to avoid that. Perhaps it's one reason that the modern faces of the early 19th century adopted lining figures.

There's no reason to stick to the conventional Anglo up-down scheme - in fact it's not difficult to improve on it. The French for one knew what they were doing a century ago, and it's high time we snap out of our servitude to the current scheme.

hhp

Hrant, why/how is the French scheme better?
(Pointers to older threads welcome too.)

"I don’t think there’s any way to avoid that"
How about hybrids instead of full-blown OSFs?

See my 3rd post here for a sample:
http://typophile.com/node/7596

Basically they're superior because they better match the overall vertical "center-of-gravity" of the lc (when letter frequency is factored in). With the Anglo scheme the chances of ending up with a numeral string that visibly sits too low is much higher.

hhp

I'm sorry. Maybe I'm a little traditional. But Helvetica with OSF makes me sick, just a little.

The cumbersome but [sufficiently] safe solution would be to draw
them from scratch,

Not cumbersome at all. Knock it out over the weekend. Get on with it.

I meant cumbersome to use, it being a separate font.

hhp

I for one don't like the look of tabular lining numerals shifted up and down, I've seen it in one or two fonts before, but it just looks clumsy to me. Anyway: if you want to pursue this direction, I would definately not take the lower case "o" as zero. Rather I would use a perfect circle to make it clearly distinctive. BTW, for another example of gothic with oldstyle figures look at ITC Franklin Gothic book condensed.

But why not go for another alternative. Bell uses numerals that are ±75% the height of the caps, therefore making them stick out a lot less. It is a rather easy modification to make, and I think it works well in texts. There's probably other examples of this (and a fancy name) but I can't come up with them now.

greetings Jeffrey
infraordinaire

Thanks for the very useful discussion.

Miss Tiffany : believe me, I hear you... To assuage some of the skepticism a bit further ( and save some face, lol ) let me explain that the thinking behind this has been to co-opt the, yes, commercial, ‘inclusive' qualities Helvetica can imbue, yet arrive at a singular and unmistakable application of it. There is an element of fun and irreverence intended, which is central to the brand being developed : a fashion house’s lower-cost product line.

As I said, the Helvetica mandate comes straight from the client, but not out of a place of ignorance : the very idea is taking generic, base elements which may not be ‘ideally suited for the job' and elevating them through decisions made in their use and juxtapositions. A certain level of garishness will ensue if all goes to plan, which will hopefully be part of the charm. That said, we also need good function and so I find great value in a lot of the information here - - the French scheme and Bell scale are both very appetizing indeed...

Thanks again to all!

> I would use a perfect circle to make it clearly distinctive.

I find that way too jarring. The problem is that -unlike in a font with weight contrast- in a monoline font your options are limited. This is actually another reason to go with hybrids*, instead of OS nums that fit within the x-height.

* Like in Bell, but up & down too.

hhp

I don't think that using the "French" scheme of numerals would be such a good idea. By applying OsF to a grotesque, you're making a statement - ironic, perverse, whatever. This statement should be clear, so as to become somewhat unobtrusive after the first moment of surprise. By using that quite unusual scheme of numerals you're introducing a second level of typographic sophistication, if you will, that muddles the original point and makes the solution rather less efficient (unless your target public is the Typophile crowd).

Agree with Hrant about the inappropriateness of the perfect circle. That's a Neogrotesque, not a Geometric Sans.

But it's a rare audience that even notices the vertical placement
of OS numerals, much less minds deviations from their tradition.

hhp

OK, quick and dirty hybrids for visual comparison:

I'm not sure. But looking at this, I think I'd agree that people
probably wouldn't notice anything funny with the French scheme.
In a way, I think it even seems more befitting of a "modern" face
(cf. this: http://www.flickr.com/photos/ninastoessinger/3912153709/ ).

That third one strikes me as very peculiar, though it does harmonise better with the extenders of the alphabet.

Still think the scaled numerals is the way to go, though they still have to be smaller than this. The rest looks eternally quirky (OK if that's yr thang ;) )

greetings Jeffrey
infraordinaire

> That third one strikes me as very peculiar

Yes, think twice if your audience is type designers. :-)

hhp

"though they still have to be smaller than this"
Note how big the x-height is though. You might run into conflicts with that.

F.y.t.i.:
Linotype did old style numerals for the GX Core version of Helvetica released in 1994 (title of the cd: »34 GX Typefaces from Linotype-Helll: Intelligent Fonts for QuickDraw GX).

Now with picture!

New Rail Alphabet base on the original Rail Alphabet by Jock Kinneir and Margaret Calvert. What's not to like?

Well, since you asked...
"Following classic principles, the Italic
has a slightly narrower character width"

Classic, shmlassic. That's so British, subverting functionality to Ye Olde Rules. If you're that close to making the widths the same, you might as well make the two styles uniwidth, which can be helpful. The thing is a slanted-Roman anyway - get real.

hhp

Wow, in the version that Henrik posted, that's one ugly "2". Is that just squooshed vertically? :-\

The OS "2" really needs to ascend anyway. And there is a precedent, for people who need that sort of thing: Joanna.

hhp

>New Rail Alphabet

Agreed, that width difference is nothing to get excited about. But the bit that made me smile was the weight names: Off White, White, Light, Medium, Bold, Black.

The cap widths and barless fractions look funky/weird/wrong to me, and I like that effect.

>Linotype GX Helvetica
Could you really use the 2 and 3 together?

...you’re making a statement - ironic, perverse, whatever.

When I've added OSF to a grotesque sans, it's been a non-statement, purely because the InDesign OpenType menu palette calls for it. A default, to avoid the application suggesting that something is missing from the font. Figgins figs:

I've never liked Joanna, but those numerals sure are interesting – the asc/desc pattern actually seems to make some sort of sense, beyond convention.
Now all I want to know is why nobody makes non-ascending "8"s. I'd dig that.

IMO, the disposition of ascenders and descenders in OSF matches that of Latin script text in most languages, i.e. with more happening down below, especially the "g" and "y".

Not really - not when you take into account letter frequency.
No language I've noticed sits as low as the traditional OS nums.

hhp

http://www.bertholdtypes.com/bq_library/590031.html

Problem solved :-)

Hrant:
The OS "2" really needs to ascend anyway.

We'll have three years in a row soon without ascenders or descenders. Unless you do something about it.

Foiling the dreams of Modernists is plenty motivation for me! :-)

hhp

; P
